AGT-DM3015
AGT-DM3015 is very popular military grade multifunctional night vision products in the market. High magnification - long viewing distance, large objective lens - strong light transmission, can be equipped with 2nd generation + or quasi-3rd generation image intensifier tube according to customer needs. As a multifunctional monocular night vision device, it can be connected to mobile phones, cameras, etc. for night shooting and functional accessories. The diversity of optional accessories greatly expands the scope of use of this night vision device. This product has strong practicability and can be used for night hunting, night fishing, forest fire prevention, power line inspection, home security, public security night patrol, investigation and evidence collection, frontier anti-smuggling, etc. It is an ideal device for both military and civilian use.
1. This product can be connected with digital cameras, cameras, camcorders, mobile phones, etc. for night shooting
2. With IP66 waterproof and dustproof level, it can be used normally in extremely harsh environments (fog, showers, dusty environments, sandstorms, etc.)
3. The night vision device has anti-glare and anti-glare functions to protect the instrument from damage
4. Built-in infrared indicator light and low battery indicator (displayed in the eyepiece), shading goggles and other designs enhance the user's concealment
5. Standby zero consumption: When not in use for a long time, the battery will not lose power when placed in the battery holder
Night vision device, Soft helmet, Carrying case, Manual, Lens cleaning cloth, Warranty card, Desiccant
Model | AGT-DM3015 |
IIT | Gen3 |
Resolution (lp/mm) | 57-64 |
Photocathode type | GaAs |
S/N (dB) | 21-24 |
Luminous sensitivity (μА/lm) | 1500-1800 |
MTTF (hrs) | 10,000 |
Magnification | 5x |
FOV (deg) | 40 |
Detection distance (m) | 250-280 |
Diopter (deg) | +5/-5 |
Lens system | F1.2, 60mm |
Range of focus (m) | 0.25--∞ |
Dimensions (mm) | 235X77X61 |
Weight (g) | 793 |
Power supply (v) | 2.0-4.2V |
Battery type (v) | 1 3V CR123A lithium battery |
Battery life (hrs) | 80(w/o IR) 40(w IR) |
Operating temperature(℃) | -40/+60 |
Environmental rating | IP67 |

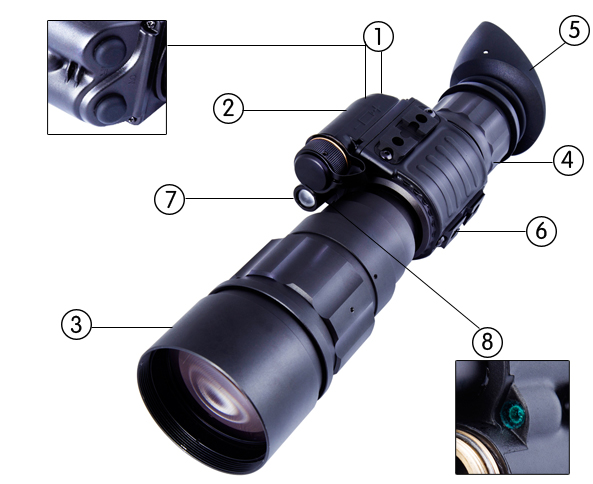

1. Power work switch
2. Battery compartment
3. Objective lens
4. Eyepiece
5. Goggles
6. Cards
7. Infrared auxiliary light source
8. Environmental detectors
AGT-DM3015 is very popular military grade multifunctional night vision products in the market. High magnification - long viewing distance, large objective lens - strong light transmission, can be equipped with 2nd generation + or quasi-3rd generation image intensifier tube according to customer needs. As a multifunctional monocular night vision device, it can be connected to mobile phones, cameras, etc. for night shooting and functional accessories. The diversity of optional accessories greatly expands the scope of use of this night vision device. This product has strong practicability and can be used for night hunting, night fishing, forest fire prevention, power line inspection, home security, public security night patrol, investigation and evidence collection, frontier anti-smuggling, etc. It is an ideal device for both military and civilian use.
1. This product can be connected with digital cameras, cameras, camcorders, mobile phones, etc. for night shooting
2. With IP66 waterproof and dustproof level, it can be used normally in extremely harsh environments (fog, showers, dusty environments, sandstorms, etc.)
3. The night vision device has anti-glare and anti-glare functions to protect the instrument from damage
4. Built-in infrared indicator light and low battery indicator (displayed in the eyepiece), shading goggles and other designs enhance the user's concealment
5. Standby zero consumption: When not in use for a long time, the battery will not lose power when placed in the battery holder
Night vision device, Soft helmet, Carrying case, Manual, Lens cleaning cloth, Warranty card, Desiccant
Model | AGT-DM3015 |
IIT | Gen3 |
Resolution (lp/mm) | 57-64 |
Photocathode type | GaAs |
S/N (dB) | 21-24 |
Luminous sensitivity (μА/lm) | 1500-1800 |
MTTF (hrs) | 10,000 |
Magnification | 5x |
FOV (deg) | 40 |
Detection distance (m) | 250-280 |
Diopter (deg) | +5/-5 |
Lens system | F1.2, 60mm |
Range of focus (m) | 0.25--∞ |
Dimensions (mm) | 235X77X61 |
Weight (g) | 793 |
Power supply (v) | 2.0-4.2V |
Battery type (v) | 1 3V CR123A lithium battery |
Battery life (hrs) | 80(w/o IR) 40(w IR) |
Operating temperature(℃) | -40/+60 |
Environmental rating | IP67 |
1. Power work switch
2. Battery compartment
3. Objective lens
4. Eyepiece
5. Goggles
6. Cards
7. Infrared auxiliary light source
8. Environmental detectors
